SPORT GATE 500
DESCRIPTION

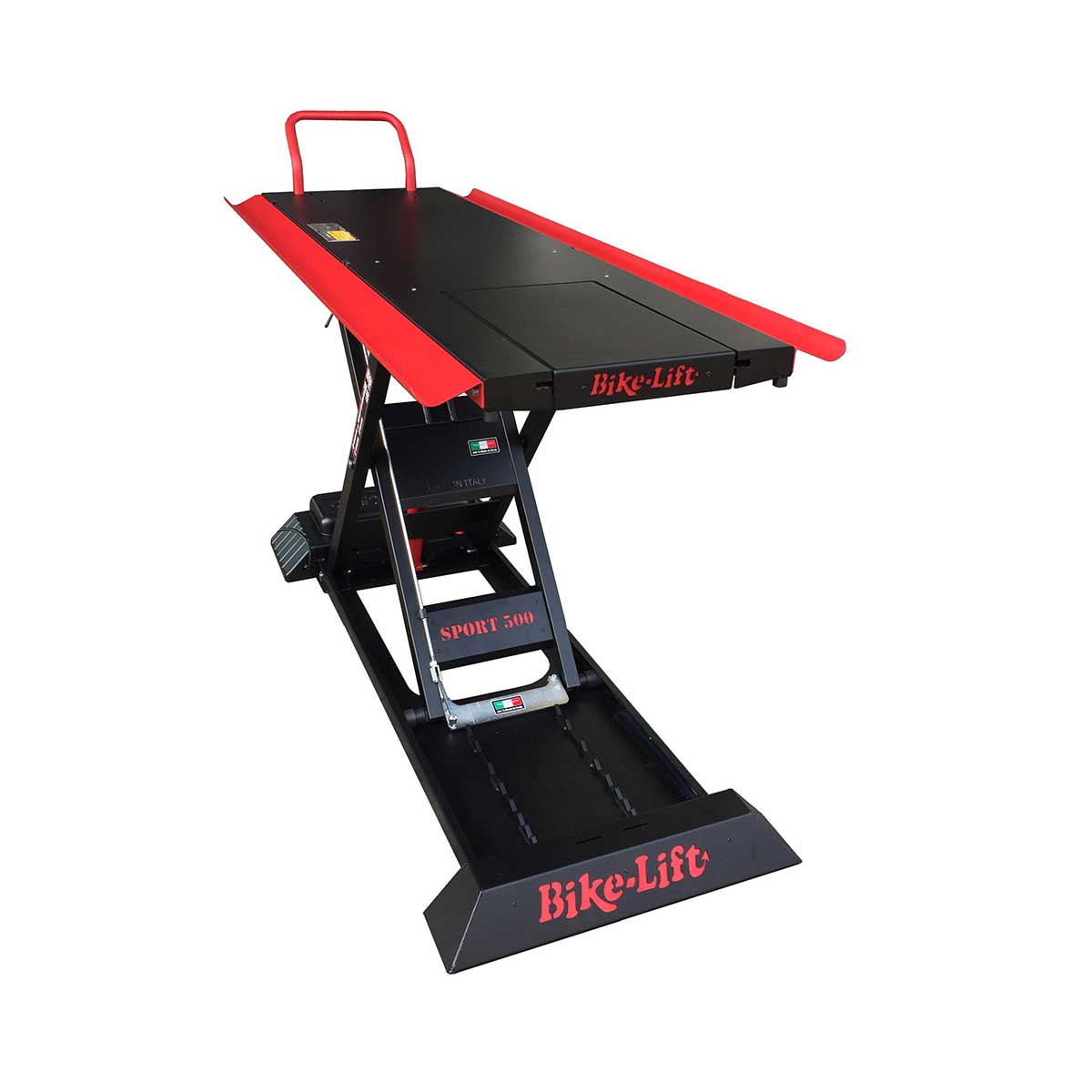

The SPORT GATE 500 lift has been designed to meet two specific requirements: limited space and necessity to operate as ergonomically as possible on sport bikes and large displacements mopeds. The table top is only 60 cm wide and allows the operator to work very dose to the bike and with the utmost level easiness, efficiency and safety. lt is equipped with a dropping GATE panel for an easy disassembly of the rear wheel.
DATA SHEET
SG-001 500 Foot pump
SG-002 500 Air pump
SG-003 500 Electro-hydraulic pump
SG-003/F Recessed floor version
SG-004/R 500 Electro-hydraulic pump with remote control
Load capacity: 500 Kg
Max. height.: 120 cm
Min. height: 20 cm
Lifting tabletop dimensions: 210×60 cm
Run-up ramp dimensions: 62×44.5 cm
Safety lock positions: 8
Overall lift dimensions: 220×84 cm
Side wings dimensions: 210×12 cm
Overall dimensions of the lifting tabletop: 210×84 cm
Weight: 200 Kg
ELECTRO-HYDRAULIC CONTROL UNIT
Power: 1.1 Kw
Europe: 230 Volts
Japan: 200 Volts
America: 110 Volts
AIR PUMP
Air pressure: 7-10 Bar
Air consumption: 300L/Min
STANDARD EQUIPMENT
Ramps: 1
Standard packaging: cardboard box on wood pallet
Wheel stopper: 1
Side wings: 2
PZA protection plate: 1
