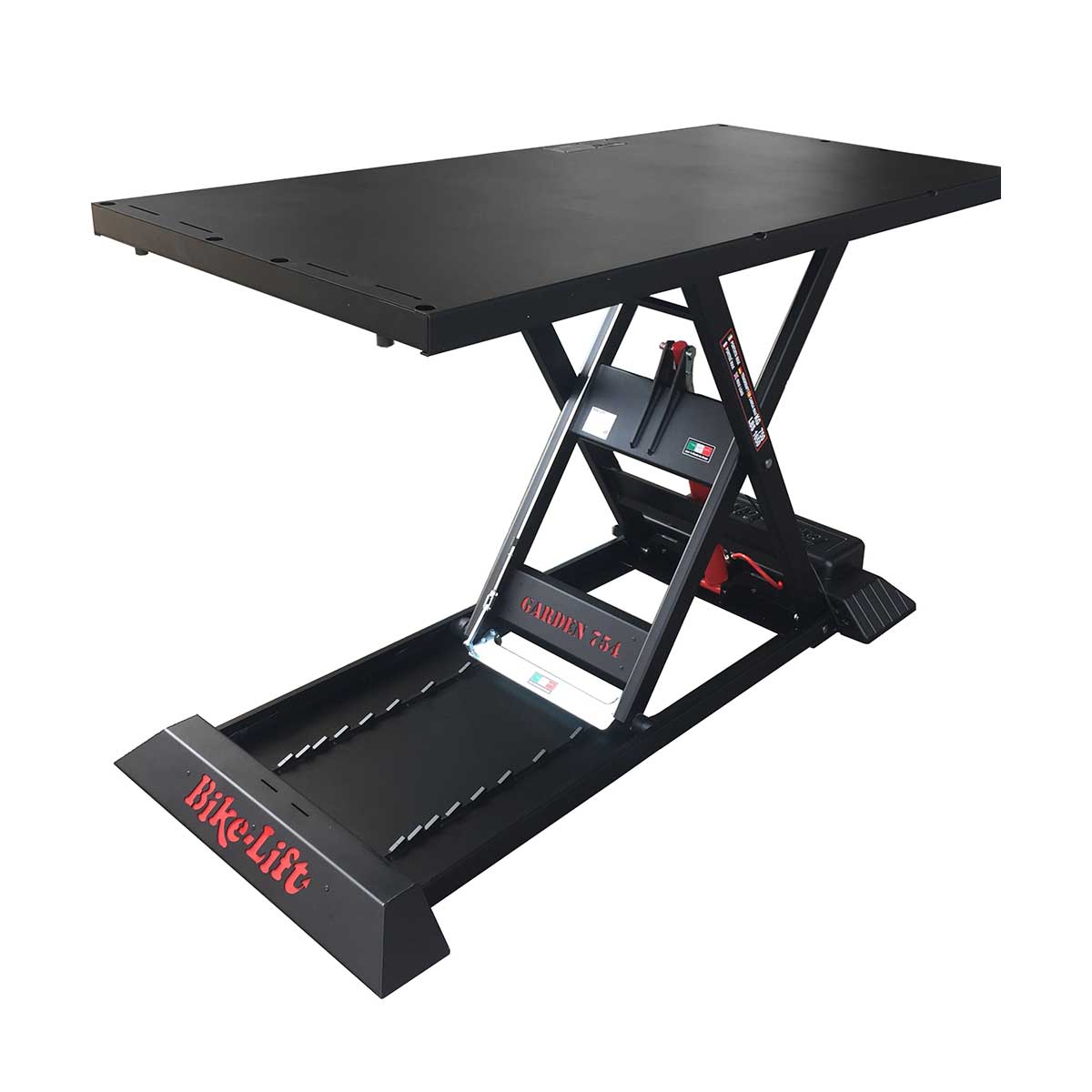

GARDEN 754
DESCRIPTION
The GARDEN 754 version (750 kg load capacity) has proved to be most versatile for industriail use, where it has been appreciated for years as a valid tool for handling heavy materials that must be lifted for assembly. One of the most sold models in Northern Europe, where it is used mainly for service activities on lawn tractors and mowers but also for snow-mobiles. Two ascent ramps and two wheel stops are provided in the equipment. Equipped with an 8-position mechanical safety and parachute valves in the two cylinders.
DATA SHEET
G-002 Air pump
G-003 Electro-hydraulic pump
G-004/R Electro-hydraulic pump with remote control
Load capacity: 750 Kg
Max. height: 130 cm
Min. height: 20 cm
Lifting tabletop dimensions: 215×100 cm
Run-up ramp dimensions: 82×24 cm
Safety lock positions: 8
Overall lift dimensions: 225×100 cm
Weight: 280 Kg
ELECTRO-HYDRAULIC CONTROL UNIT
Power: 1.1 Kw
Europe: 230 Volts
Japan: 200 Volts
America: 110 Volts
AIR PUMP
Air pressure: 7-10 Bar
Air consumption: 300L/Min
STANDARD EQUIPMENT
Ramps: 2
Standard packaging: cardboard box on wood pallet
Wheel stopper:
