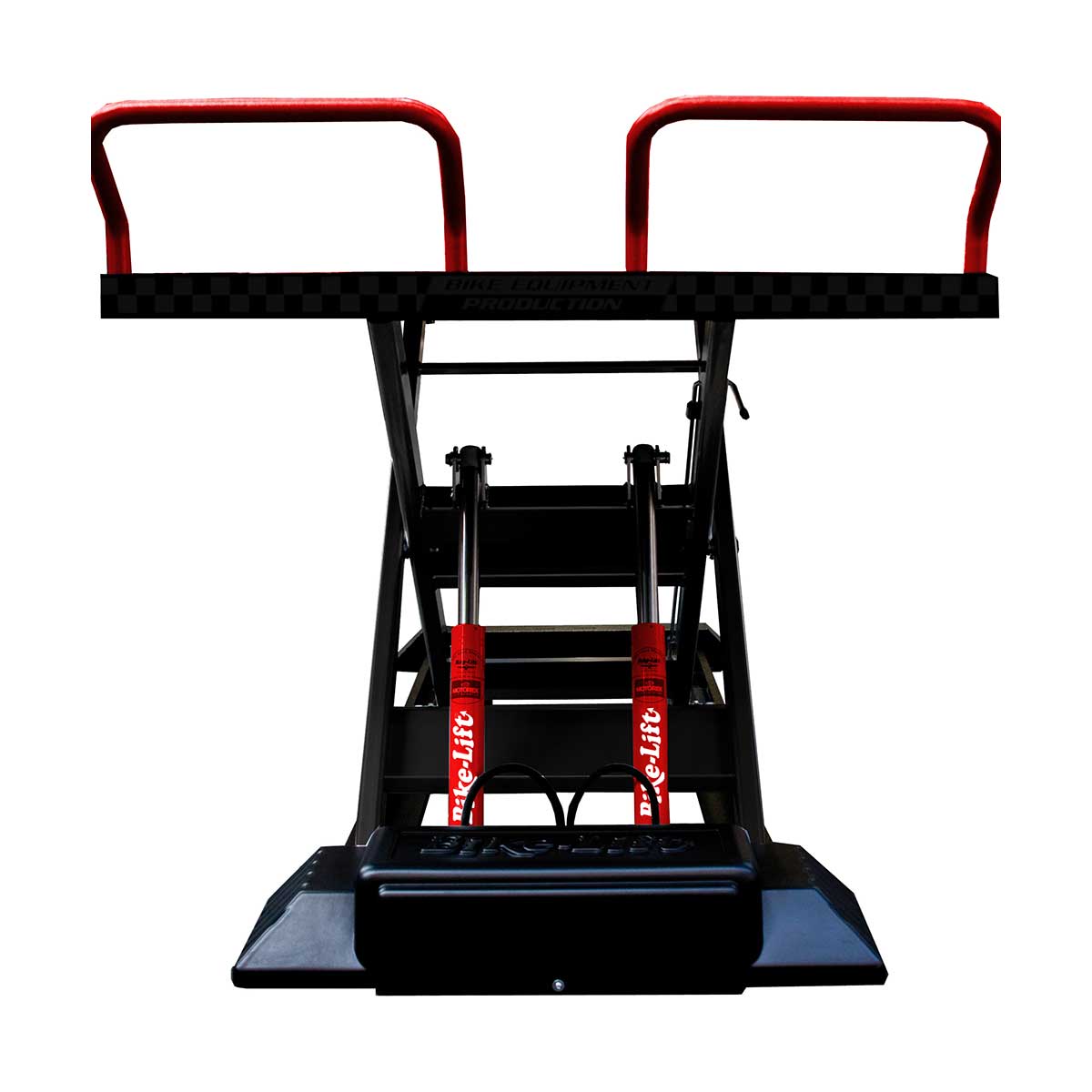

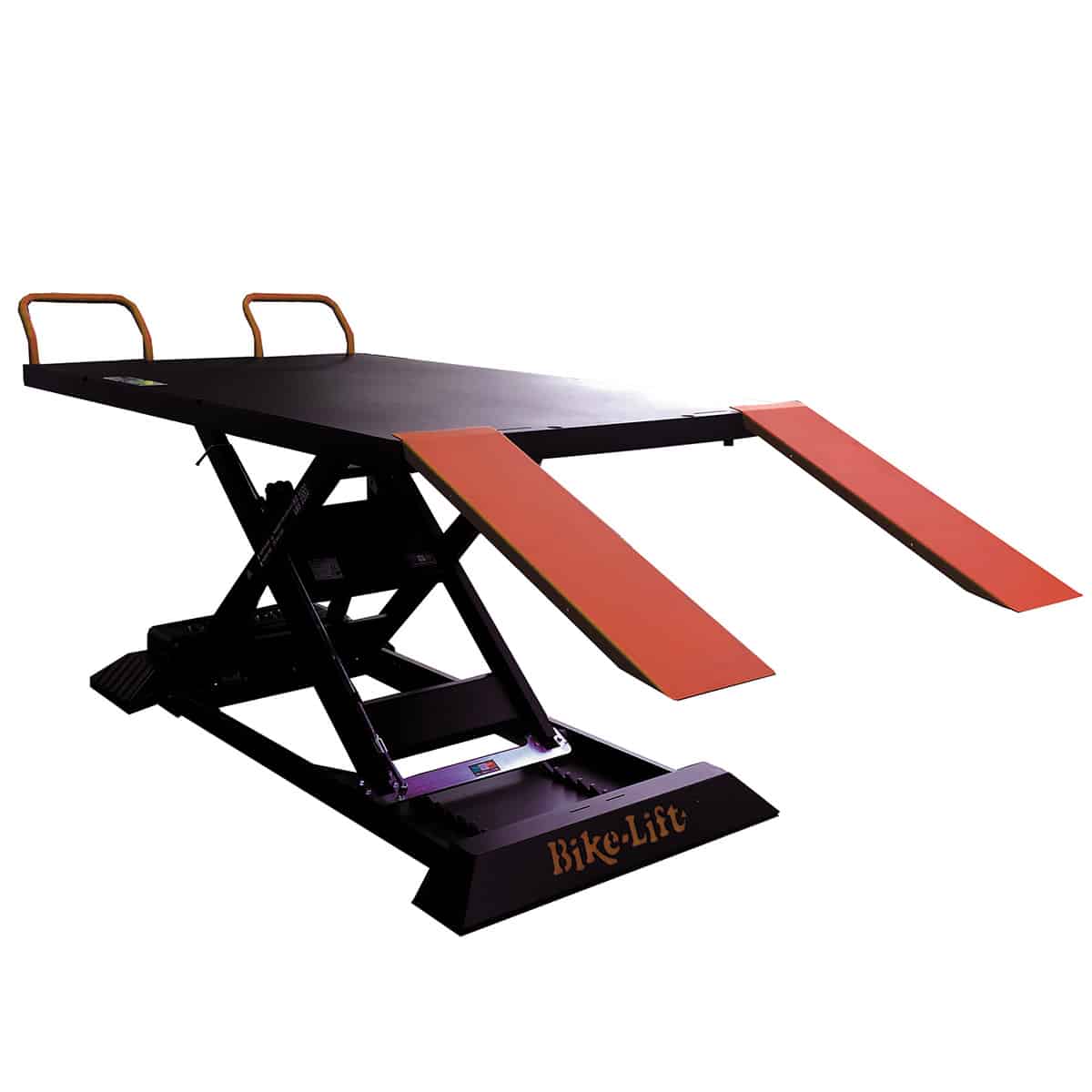

GARDEN 1000
DESCRIPTION

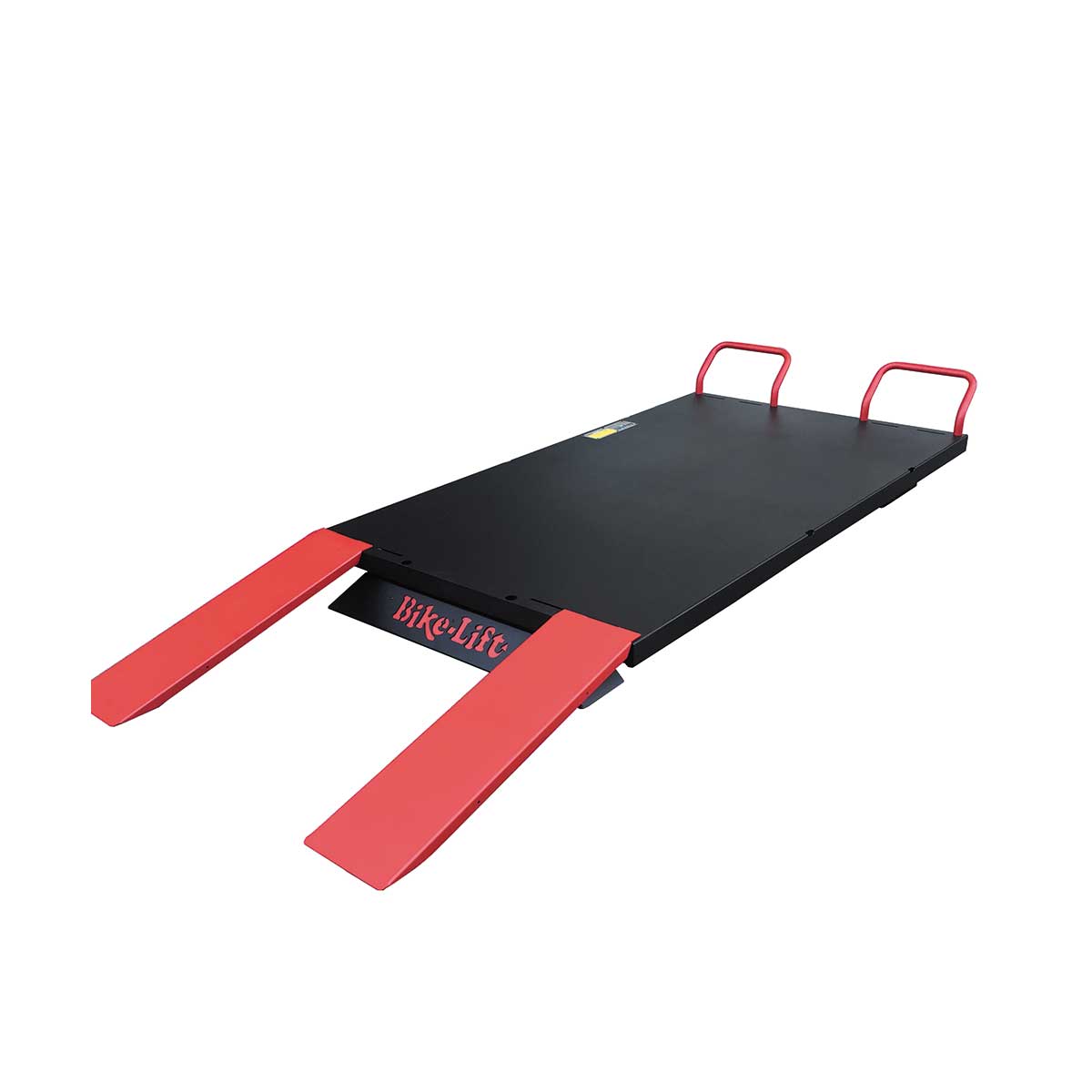

This lift has been designed to lift lawn tractors and lawn mowers but, thanks to its characteristics it has found over the years various applications both in the industriai and private sectors. lt has a 120 cm x 215 cm long tabletop and a lifting capacity of 1000 kg at 100 cm height. lt is supplied with a double run-up ramp and two wheel stoppers.
DATA SHEET
G-003/10 Electro-hydraulic pump
G-004/l0R Electro-hydraulic pump with remote control
Load capacity: 1000 Kg
Max. height: 100 cm
Min. height: 20 cm
Lifting tabletop dimensions: 215×120 cm
Run-up ramp dimensions: 82×24 cm
Safety lock positions: 6
Overall lift dimensions: 225×120 cm
Overall dimensions of the lifting tabletop: 215×120 cm
Weight: 300 Kg
ELECTRO-HYDRAULIC CONTROL UNIT
Power: 1.1 Kw
Europe: 230 Volts
Japan: 200 Volts
America: 110 Volts
AIR PUMP
Air pressure: 7-10 Bar
Air consumption: 300L/Min
STANDARD EQUIPMENT
Ramps: 1
Standard packaging: cardboard box on wood pallet
Wheel stopper: 1
Side wings: 2
