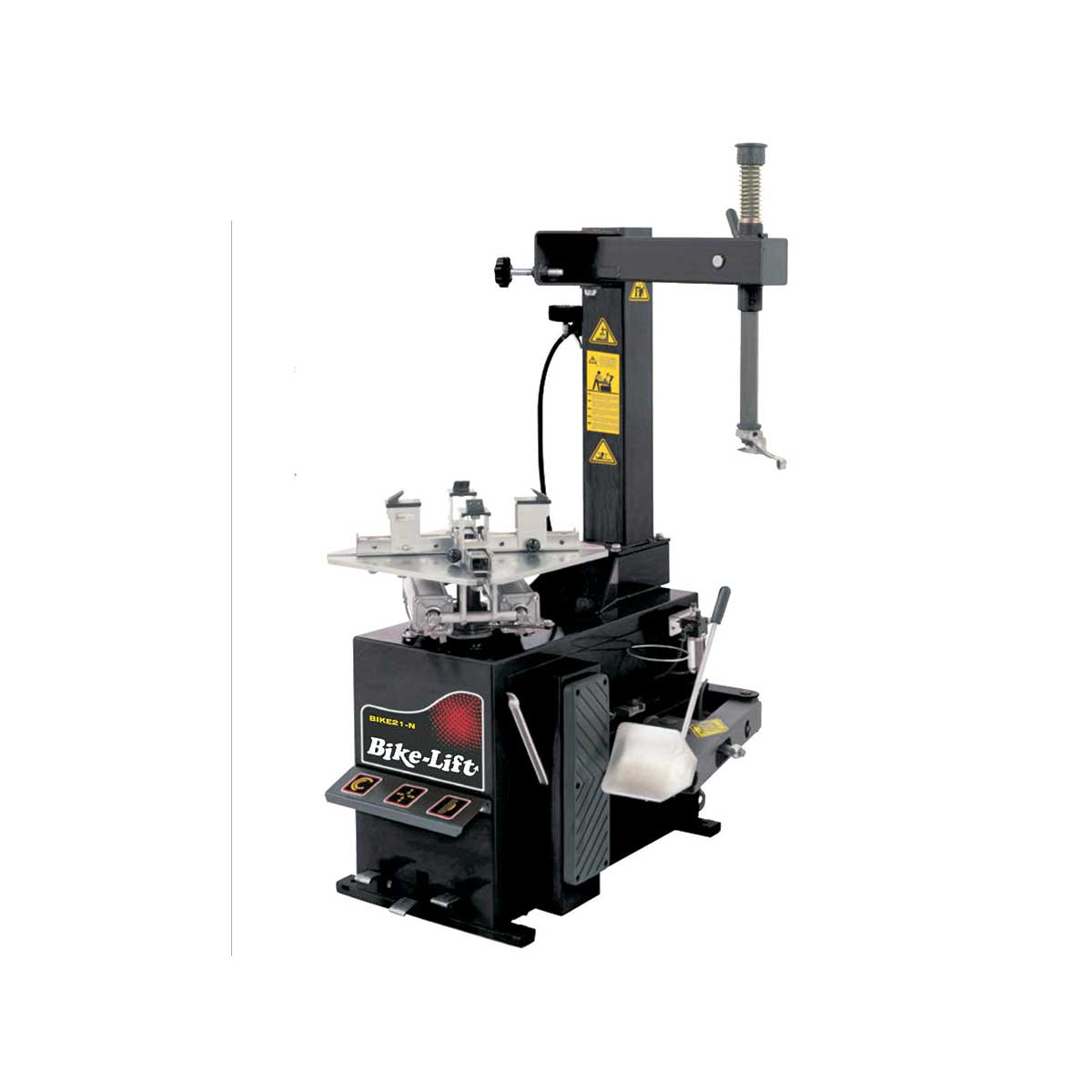

BIKE-21N Tyre changer

DESCRIPTION

Semi-automatic tyre changer, designed to mount and demount motorcycle, mopeds, ATV, Quads, Go-karts and turf vehicles. It is conceived for operators looking for a traditional bead braking system. The self-centering turntable locks rims from 6″ to 24″ with the standard adapters supplied. The main features are:

  • Proven and reliable semi-automatic swing arm configuration and manual locking system of the vertical working arm.
  • Self-centering turntable with capacity from 6″ to 24″ performing 3 different clamping positions easily selectable without the use of extra tools.
  • Traditional bead braking system equipped with a specific rim protection cover.
  • Tool head supplied with plastic protection inserts for alloy rims.

DATA SHEET

Item: BIKE-21N/230V

Item: BIKE-21N/380V

Power: 230 V/380 V

Weight: 174 Kg

Air: 08-10 bar

Engine power: 0.75/1 Kw

Clamp range: 6″-24″

Maximum bead breaker opening: 310 mm

Bead breaker power: 2500 Kg

Max. wheel diameter: 960 mm (37″)

Max. wheel width: 250 mm (10″)

Rotation speed: 6 Rpm

Dimensions: 1830x1060x1020 mm
