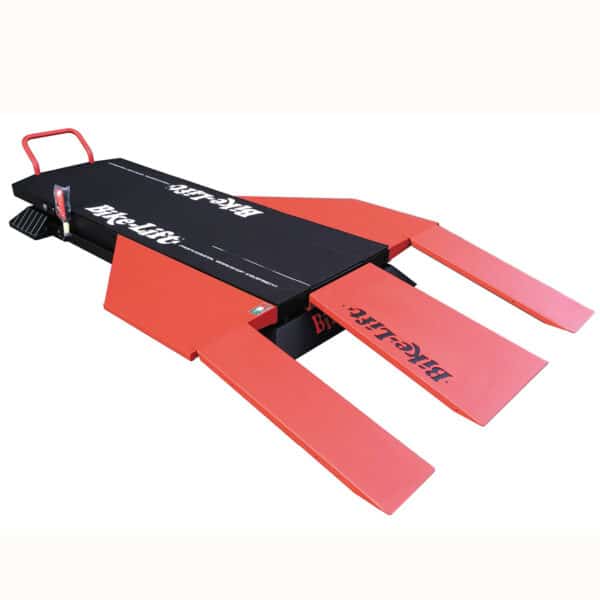

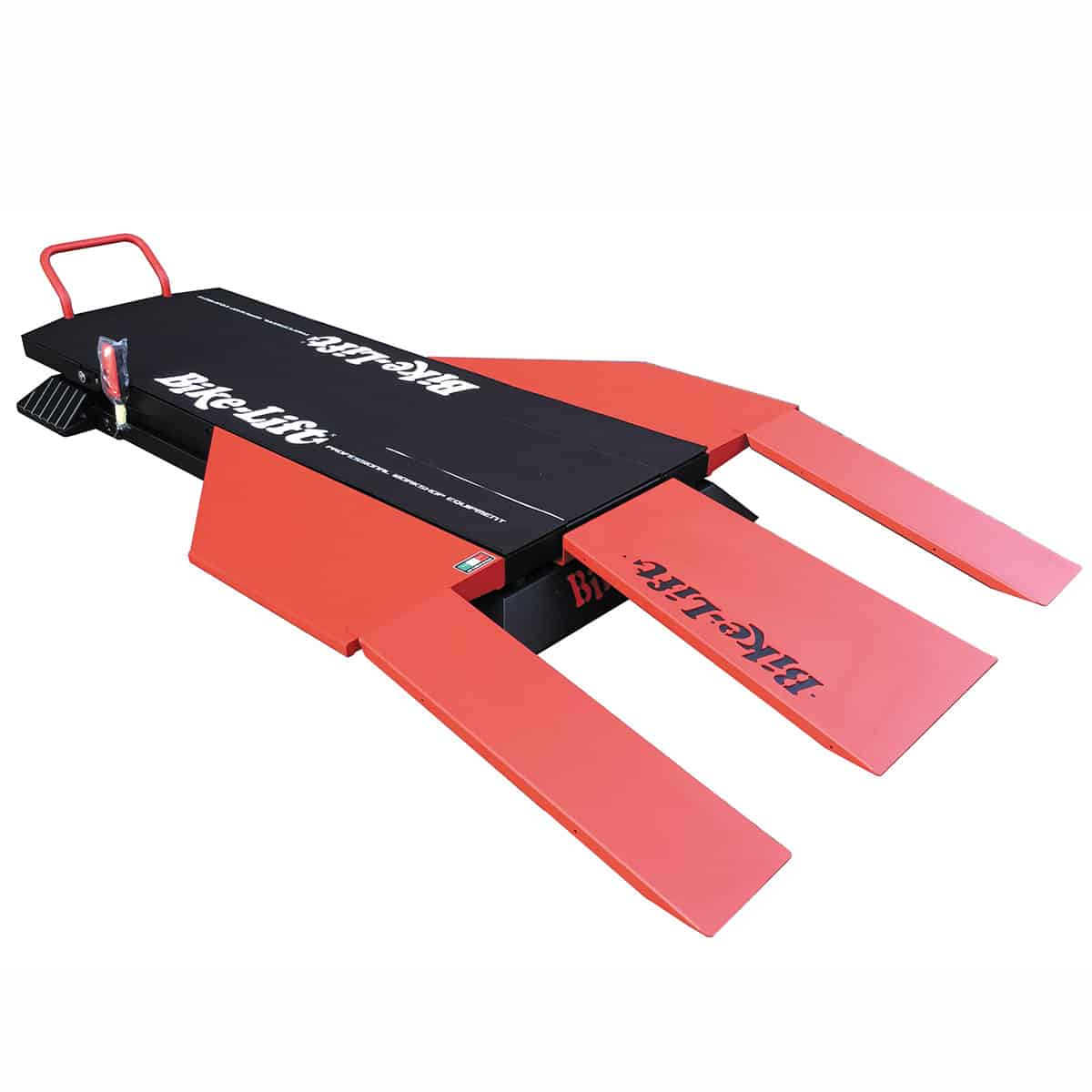

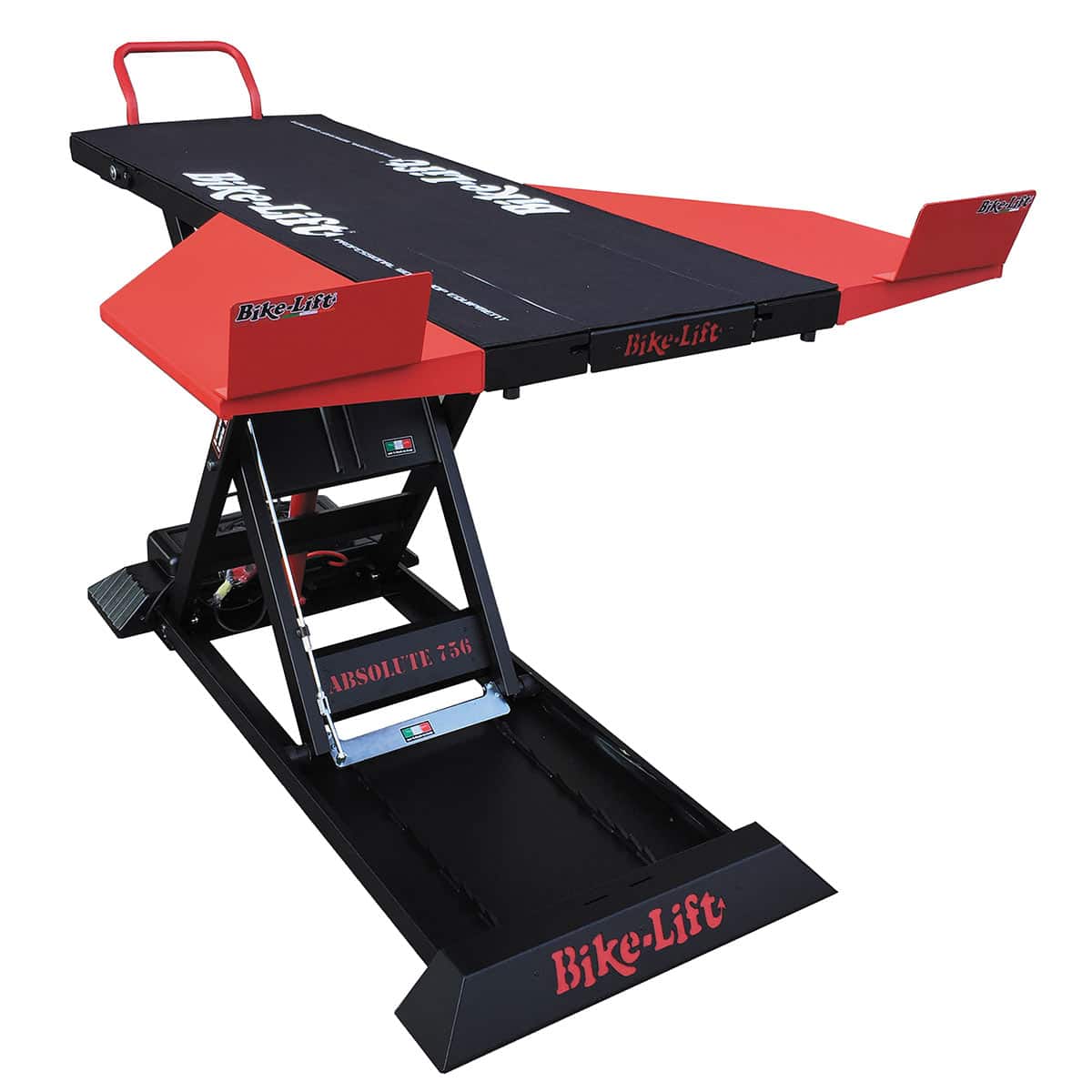

ABSOLUTE 756 Spider
DESCRIPTION
Trikes are increasingly present in the international motorcycle scene, therefore, this specific version could not be missing from our range of lifts. Considering the structure of a Trike and its weight, we could only choose the ABSOLUTE model as the base, on which two very strong wings have been applied for the rear or front wheels of the Trike. Stability is certainly the main endowment of this lifter, which certainly sets a benchmark in the international market.
DATA SHEET
SP756-003 Electro-hydraulic pump
SP756-004/R Electro-hydraulic pump with remote control
Load capacity: 750 Kg
Max. height.: 130 cm
Min. height: 20 cm
Safety lock positions: 8
Lifting tabletop dimensions: 220×75 cm
Run-up ramp dimensions (central): 82×51 cm
Overall lift dimensions: 230×160 cm
Run-up side wings dimensions: 23.5×82 cm
Weight: 290 Kg
ELECTRO-HYDRAULIC CONTROL UNIT
Power: 1.1 Kw
Europe: 230 Volts
Japan: 200 Volts
America: 110 Volts
STANDARD EQUIPMENT
Ramps: 3
Standard packaging: cardboard box on wood pallet
Wheel stopper: 3
PZA protection plate: 1
Side wings: 2
Optional: mat
